6 Colors Eco Solvent Wide Format Printer fast speed for vinyl banner

Product Categories

Guangzhou Tongchuang Electronic Technology Co., Ltd.

Contact Now

6 Colors Eco Solvent Wide Format Printer fast speed for vinyl banner

Ask Lasest Price
Brand Name :	Acetek
Certification :	CE, ISO9001
Price :	+
Model Number :	tc-1800

Add to Cart

Product Details
Company Profile

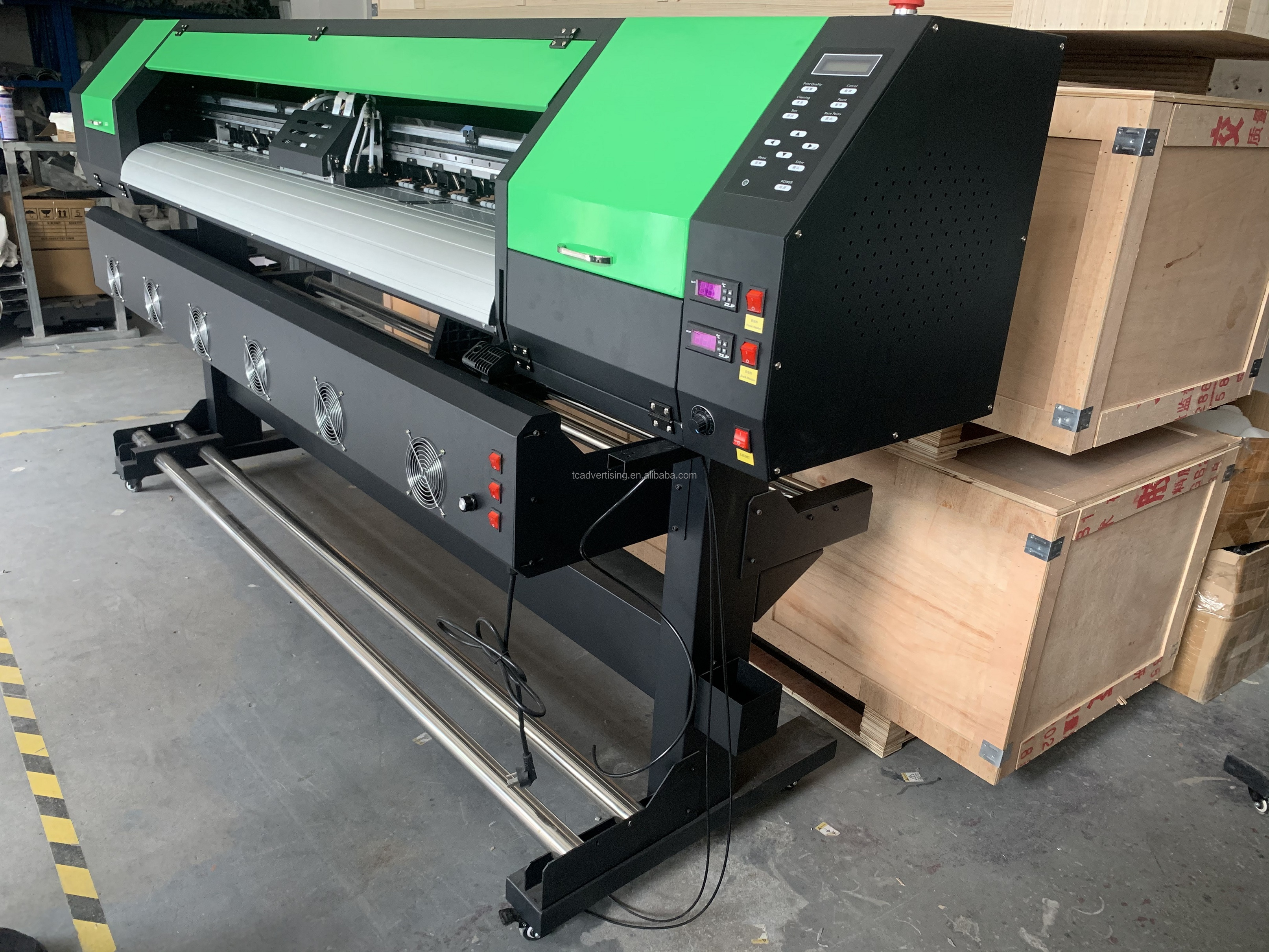

6 Colors Eco Solvent Wide Format Printer fast speed for vinyl banner

Product Overview

6 colors fast speed outdoor large eco solvent wide format printer with xp600/i3200 print head

Advantages:

1. 1/2 pieces of I3200 Print heads, high quality up to 1440dpi

2. Automatic ink maintenance station is more convenient and stable.

3.We are the ONLY one to use Dual Brushless Servo Motor in piezo series’s quality with

more than ten years service life

4. 1600/1800/2500/3200mm printing width

FEATURES AT A GLANCE

6 Colors Eco Solvent Wide Format Printer fast speed for vinyl banner

Left

Right

Back

PRODUCT SPECIFICATIONS

No	TC1800			TC1802
print head		1 pc of I3200		2 pcs of I3200
inks	4 color CMYK or 6 color CMYK +LC + LM
print width	1.6m/1.8m
printing resolution	1440 dpi	infrared	infrared	infrared
printing speed	3 pass: 30 ㎡/h 4 pass: 22 ㎡/h 6 pass: 15 ㎡/h			3 pass: 60 ㎡/h 4 pass: 40 ㎡/h 6pass: 25 ㎡/h
rip software	maintop photoprint	maintop photoprint	maintop photoprint	maintop photoprint
power	600w	600w	700w	700w
voltage	AC220V/11V 50-60 HZ
operation system	win xp/ win 7
dimensions	2870703630mm 200kg 1.3CBM			3040890770mm 250KG 2CBM
infrared	no	no	equipped	equipped
automatic print head cleaning	1 set	1 set	1 set	1 set
heating system	1 set	1 set	1 set	1 set
automatic media feeding system	1 set	1 set	1 set	1 set
automatic media taking-up system	1 set	1 set	1 set	1 set
fans system	1 set	1 set	1 set	1 set
platform suction control	1 set	1 set	1 set	1 set
interface	usb

PRODUCT CONFIGURATION

leadshine integrated servo motor

media feeding motor

hoson board

hoson is a famous professional brand

(one-year warranty)

Italy Magadyne belt

heating system: three-stage heating

1: pre heating, middle heating: Platen heater are installed inside platform to ensure good ink absorption
2: Post heating: infrared heating tubes and cold drying fans are working together to quickly and fully dry up the finished media.
3: There is a PID temperature controller to control three-stage heating temperature

Drying system:

cold fans are working together with infrared heating to speed up drying of finished printing

Japan THK linear guide rail with mute glider and aluminium beam

look at those little holes which can open and close automatically. They work as an high-suction vacuum to give negative pressure suction fan to ensure media is 100% flat. So carriage can move smoothly and print media cling tightly to platform.

control panel

English& Chinese control panel with error report function.

easy to operate

1500ml bulk ink tank

Continuous ink supply system

integrated aluminium alloy platform

original Japan brand guide rail to guarantee accurate and silent movement of print head carriage

Straightness accuracy: 0.1mm
flatness accuracy: 0.05mm

FAQ

Q: I don't know your company well, how can I trust you?

We are the Gold Supplier and Verified Supplier of Alibaba, as well as approved

by CE and SGS certification .

Q: How long can I receive the goods?

We deliver goods within 5~7 working days after we receive deposit. Goods

can be shipped to you by air or by sea.

Q: When my machine needs to be repaired, where to buy parts?

We have a complete set of Quality Inspection system. QC staff monitor the entire

production processes to ensure that our machine meets your requirement. Each machine will be strictly tested and well packed before leaving factory. It will

then be opened again for a second test by our supervisors before delivery. Besides,

I myself will go to test if your machine is working normally. Test videos and pictures

will also be taken and sent to you for your final check. It hardly happens that our

machine doesn't function, but if it happens, our engineer will help you solve the

problem: If board goes wrong, we will replace or repair it within warranty time. About spare parts, we suggest you buy several pieces as backup together

with machine, like cap, damper, encoder strip, bump. These consumables

usually need to be replaced, others are not placed often. Besides, our

spare parts are easy to be found, you can also buy from your local suppliers.

Q: Do new equipment have heads installed?

Heads will not be installed. Heads will be put separately inside wooden package

to protect heads from damage during sea transportation. Do not worry about

head installation. You will receive a picture which shows clearly how to connect print

head, head board and print head

cable.Our engineer will also offer you online guidance on installation and calibration.

Q: Do they need to be assembled by a technician?

All machine arrives assembled. all spare parts are packed inside. When you receive machine, you do not need to buy spare parts, all you need to do is

install print head and software and collection system.

Q: How about the machine installation if I don't know how to install?

A: Our engineers can speak English, they will help you install machine on line via

team viewer. Engineers can also come to your country to offer on-site training on

machine. Besides, welcome to visit us for inspecting machine quality and get

technical training.

Q: What is your Warranty Policy?

We provide 1 year warranty on all electrical boards. If any part have problem during

warranty time, our company will send you replacing parts for free and help you to

change the parts. We provide lifelong after sales service.

Q:What is your company philosophy?

The only way to survive the fierce “price war” is high quality and after-sale service.

What we are looking for is not one-time order, but long time win-win cooperation.
