2.5m 3.2m eco solvent ink flex banner printer with 2/4/8pcs i3200
print head
Advantage of i3200 head eco solvent printer :
High outpout resolution
Using best quality Epson Dx5//dx11/xp600/I3200 print heads,
consists of eight columns, each hole
180, high output accuracy of up to 1440dpi.
really high speed.
now new head epson I3200 head, maximum to install 8pcs head, the
speed can get to 200 square
meter each hour
High quality output, high definition.
New variable droplet technology, up to three transformation point.
Financial mistake can make
head feathering state, in the case of high speed or low resolution
can also be embodied perfect
quality, printing can be realized without point
Stable
Industrial circuit design, to ensure stable and reliable circuit.
Large-capacity automatic ink supply
system, and so good design to ensure the overall stability of the
machine, as a user's right-hand
man Automatic ink absorbing system, simple operation, automated
sprinkler maintenance functions.
Three intelligent eclosion print function
paraments of 3.2m flex banner printer
| Model No. | TC-3200 |
| Printhead | Type | Dual Epson I3200 | 4pcsEpson i3200 |
| Nozzles | 1440 Nozzles per Head |
| Height | 2-8mm above Media Adjustable |
| Printing Width | Max 3.2 meter (126 inch) |
| Resolution(dpi) | 1440 dpi |
| Color | CMYK/CMYKLCLM | CMYK / CMYK |
| Ink | Type | Eco Solvent Ink |
| Droplet | 1.5 – 21pl Variable |
| Cartridge | Bulk ink supply: 4x350ml ink cartridges+ 1 Liter per color big ink
bottle |
| Speed | Draft | 70 sqm/h | 140 sqm/h |
| Standar47 | 50sqm/h | 95 sqm/h |
| Quality | 40 sqm/h | 75 sqm/h |
| Photo | 30sqm/h | 55 sqm/h |
| Media Types | Frontlit, Backlit, Vinyl, One Way Vision, Banner Cloth, Window
Film, Mesh… |
| Feed & Take Up | Automatic Media Feeding (Standard) & Take Up System (Optional) |
| Cleaning System | Automatic Cleaning, Anti-Clogging Flash Function & Capping System |
| Heating System | Pre/Middle/ Rear Heating System Equipped |
| Cooling System | Cooling Fan Equipped |
| Environment | Temperature: 20-28°C, Humidity: 40-60% |
| Rip Software | Maintop (Standard) / PhotoPrint (Optional) / ONYX (Optional) |
| Control Software | SinoColor Print Console |
| Interface | USB 3.0 |
| Operation System | Windows 7 / XP/10 |
| Power | AC 110/220V, 50/60HZ,1500W |
| Size & Weight | Machine | L4360 W780 H1500 (mm) / 480KG |
| Packing | L4610 W1000 H740 (mm) / 640KG |

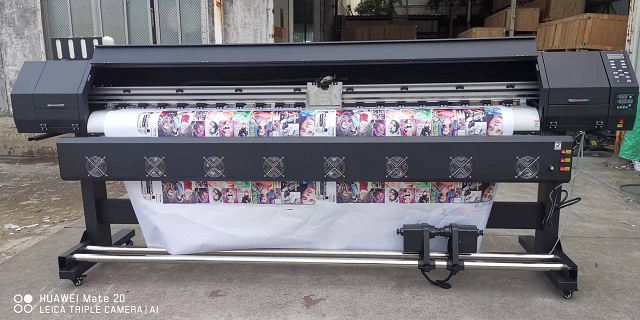

picture of eco solvent printer i3200 :
if you chose our Acetek eco solvent printer, the machine attaches
spare parts :
Applications of eco solvent printer:
